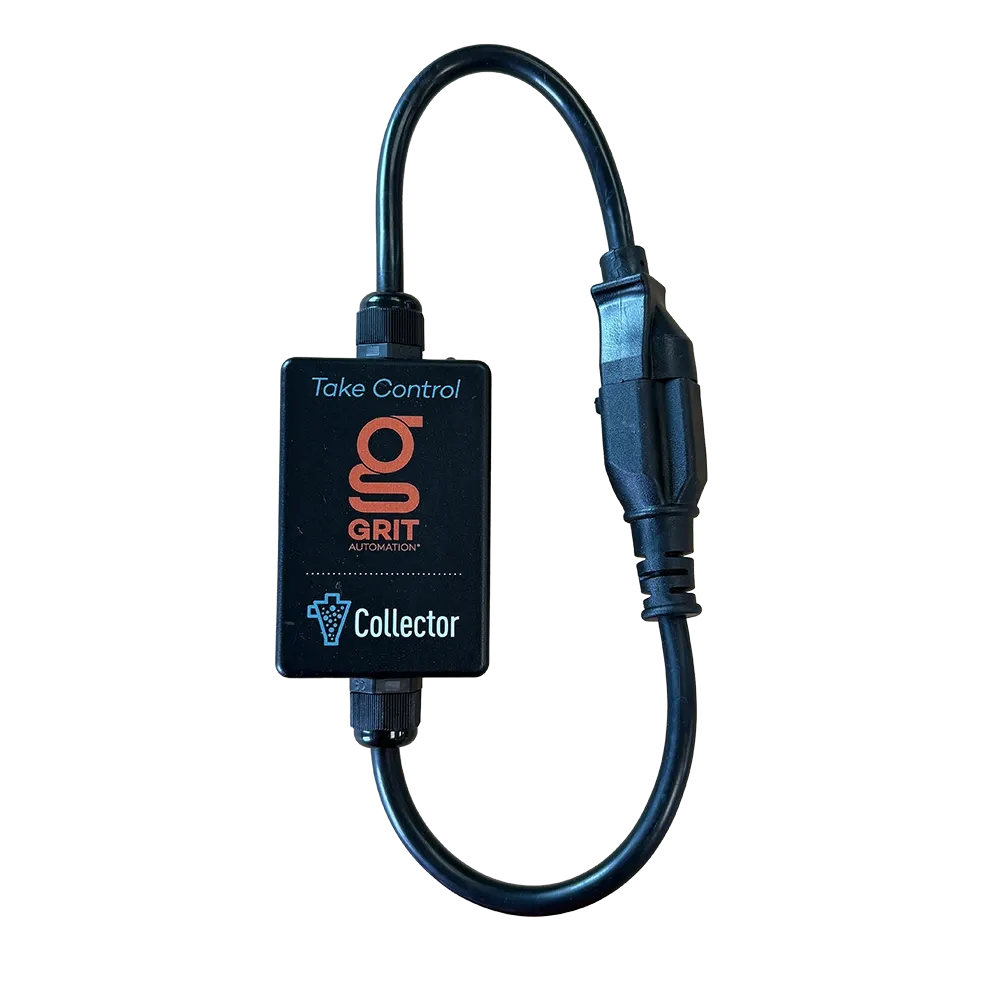

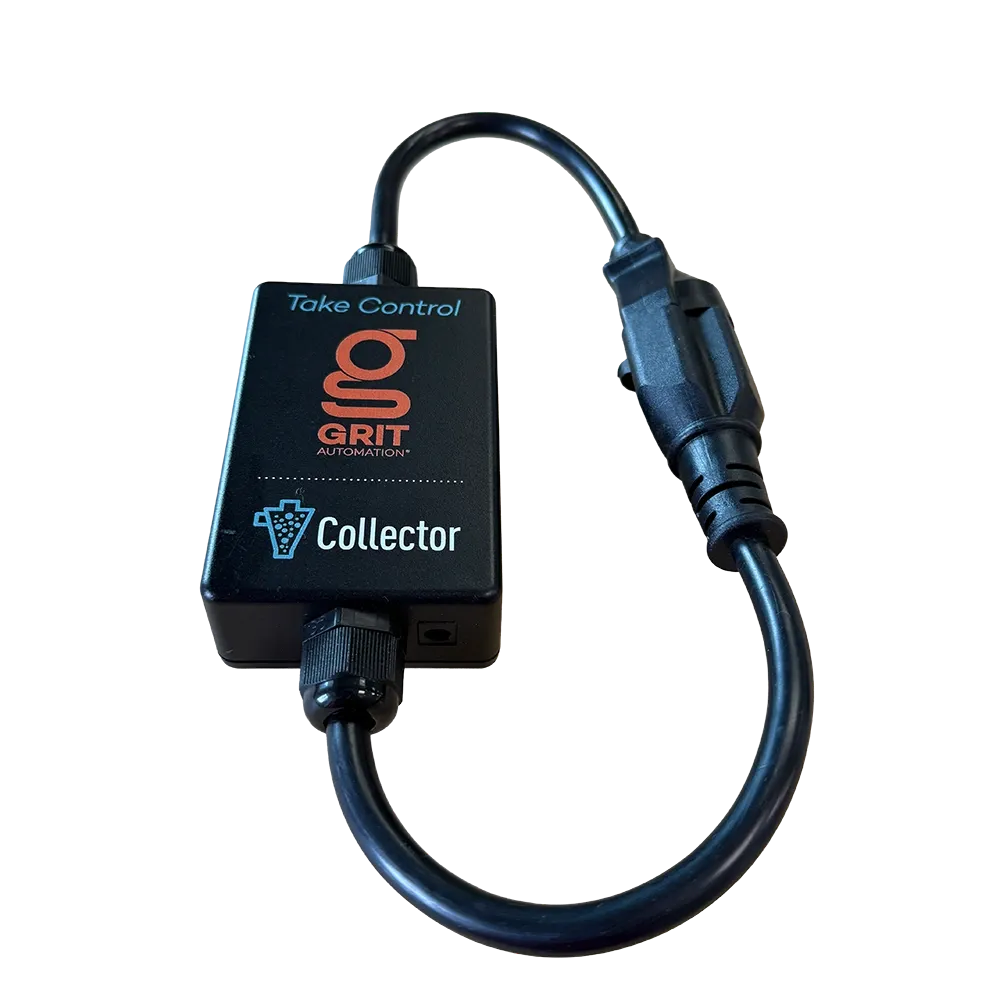

GRIT 220V 15A Collector
Collector
Plug-and-play automation for 220V single-stage dust collectors up to 15 amps.
The 220V Collector is the inline switching module for bigger single-stage dust collectors — 2HP cyclones, 220V Jet DCs, CamVacs — that need more power than a 120V circuit can deliver. Plug it in, pair it to the Hub, and it starts the collector automatically when a GRIT Trigger fires.
Key Features
- Inline relay: Switches the collector on and off on Hub command
- Plug-and-play: No wiring changes, no access panels
- Coordinated startup: Hub sequences the collector after blast gates open
- Status LED: RGB indicator shows idle or running
- Reliable pairing: Wi-Fi connection to the Hub
Specifications
- SKU GH-CO1002
- Voltage 220V
- Amperage 15A continuous
- Phase Single-phase
- Plug Type NEMA 6-15
- Cord 1 ft, 14 AWG
- Connectivity GRIT Mesh Network
- Status RGB LED
In the Box
- 1x GRIT 220V 15A Collector (GH-CO1002)
- 1x 14 AWG pass-through cord with NEMA 6-15 plug and receptacle
Compatibility
Works with any 220V single-stage dust collector drawing up to 15A continuous on a NEMA 6-15 outlet — 220V CamVacs, 2HP Jet DC-1200vx, and similar.
Installation
Plug the collector into the GRIT Collector, plug the Collector into the wall, and pair with the Hub through the GRIT app. Under two minutes.
*GRIT Hub is required for device functionality.
Important Notes
Verify your dust collector draws under 15A continuous on 220V before ordering.
