GRIT iVac Retrofit Gate Control

Gate Control

Retrofit your existing iVac gates with GRIT automation.

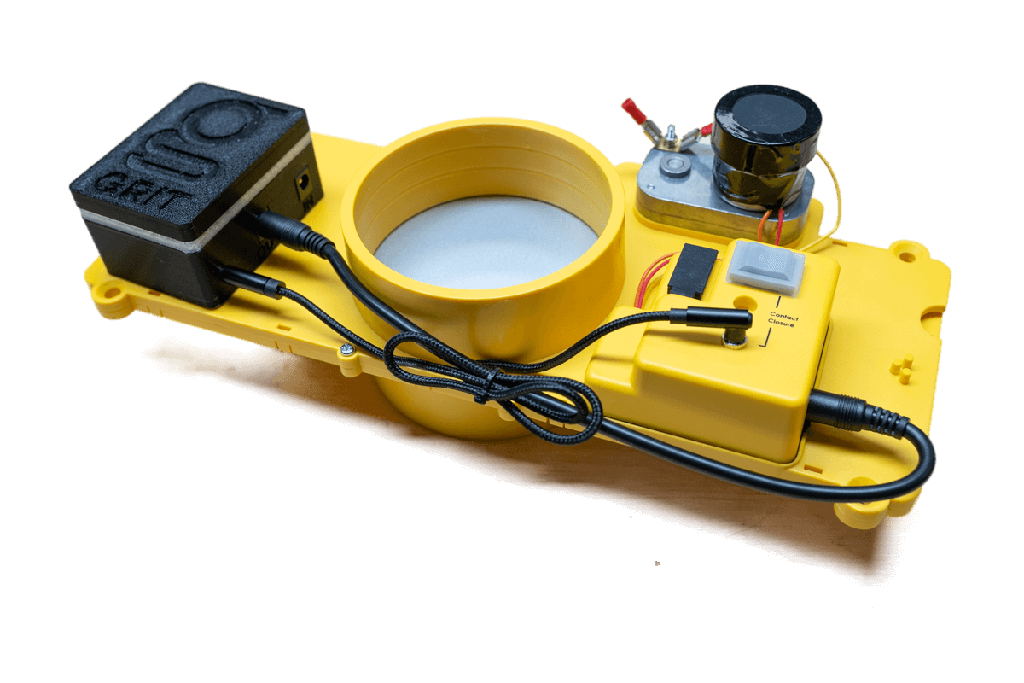

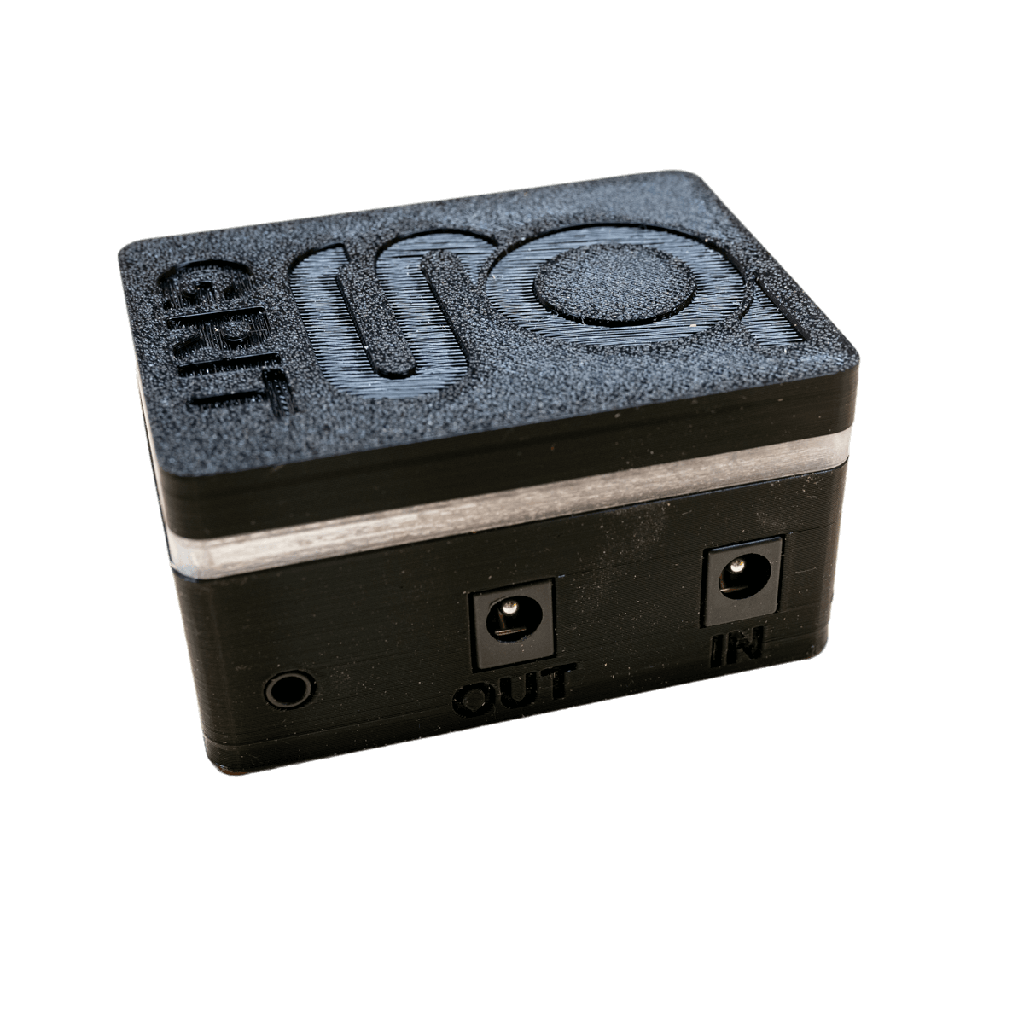

The iVac Retrofit Gate Control plugs into any existing iVac blast gate and turns it into a GRIT device: no new gates to buy, no ductwork changes. GRIT iVac Retrofit Gate Control opens and closes the gate automatically when a GRIT Trigger detects that an associated tool is running, with an LED status indicator right on the control box.

Key Features

  • iVac retrofit: Mounts to your existing iVac gates, no replacement needed
  • Hub-coordinated: Opens and closes automatically on tool-on events
  • Plug-and-play cabling: Includes the exact connectors needed for iVac control
  • Status LED: Visual indicator shows gate open or closed
  • Wireless pairing: Connects to the Hub over the GRIT mesh network

Specifications

  • SKU GH-GC4001
  • Gate Type iVac (not included)
  • Cables Male-male headphone jack + barrel connector
  • Status Open/closed LED
  • Connectivity Mesh Network to GRIT Hub

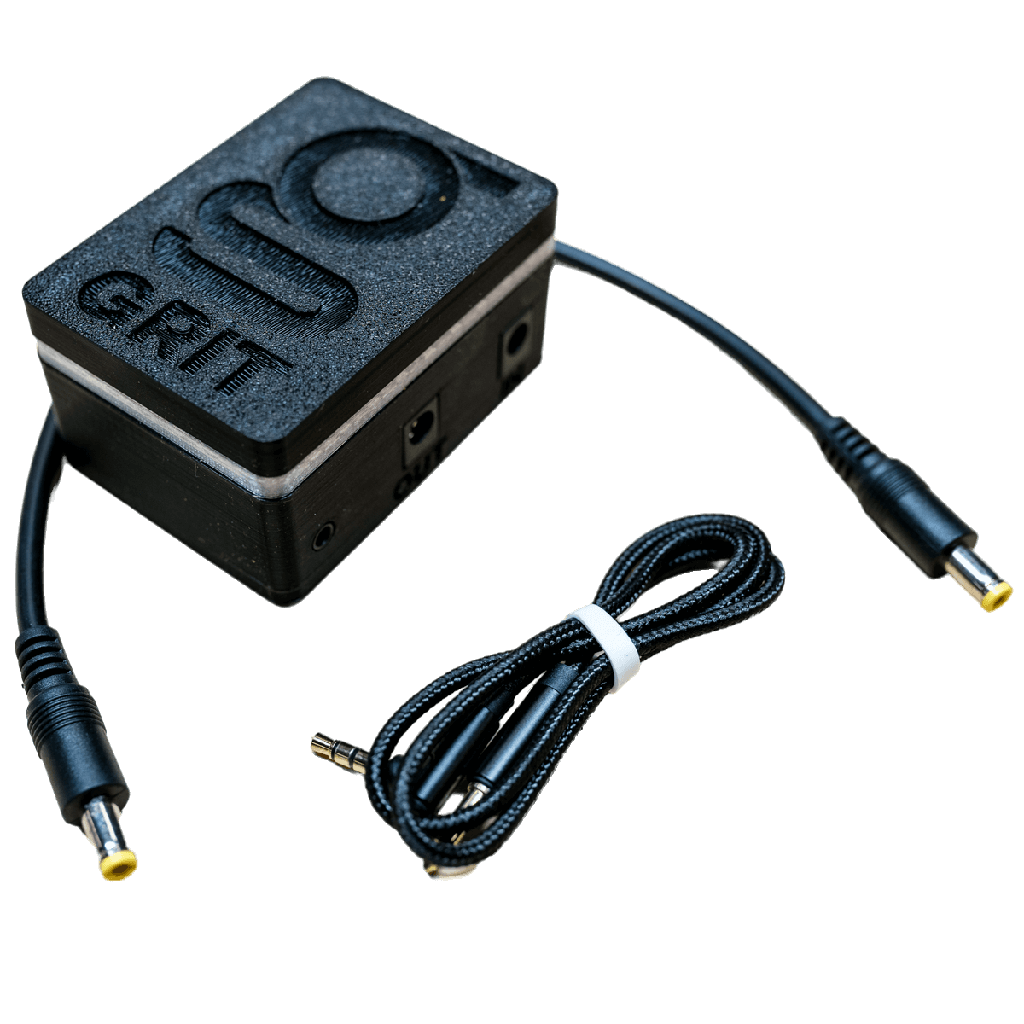

In the Box

  • 1x GRIT iVac Retrofit Gate Control (GH-GC4001)
  • Male-male headphone jack cable
  • Male-male barrel connector cable
  • VHB mounting tape

Compatibility

For shops that already own iVac blast gates. The iVac gate itself is not included. This is the GRIT control module that retrofits onto it. For new installations, use GRIT Gate Control on any standard, metal blast gate instead.

Installation

Mount the control box on the iVac gate, connect the headphone and barrel connector cables, and pair with the Hub through the GRIT app. Under five minutes per gate.

Important Notes

iVac gate not included.

$ 80.00 $ 80.00
$ 80.00
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Frequently asked questions

Can I keep the blast gates I already have?

Yes. That's what the GRIT iVac Retrofit Gate Control is for. It connects to the automated blast gate already in your ductwork and makes it part of your GRIT system. No new gates, no ductwork changes.

What powers the gate after the retrofit?

The gate keeps using its existing power supply. The retrofit includes the headphone-jack and barrel-connector cables that connect it.

Can I automate only my gates and add dust collector control later?

Yes. You can start with just gates, controlled by Triggers or a Switch Trigger, and add a collector device whenever you're ready. The GRIT Hub is required either way.

Can I run retrofitted gates and GRIT Gate Controls together?

Yes. GRIT iVac Retrofit Gate Controls and GRIT Gate Controls run together on one GRIT Hub. Keep your retrofitted gates where they are and add GRIT Gate Controls on new drops as your shop grows.
