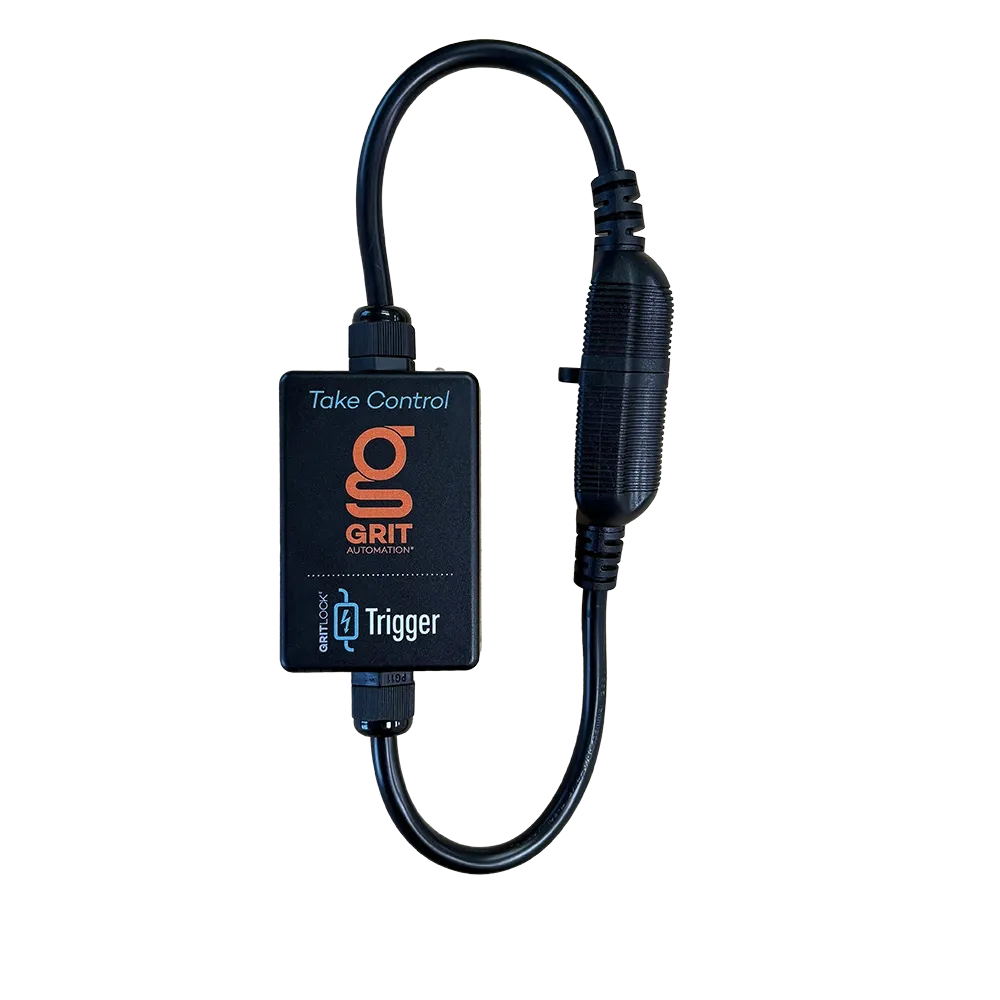

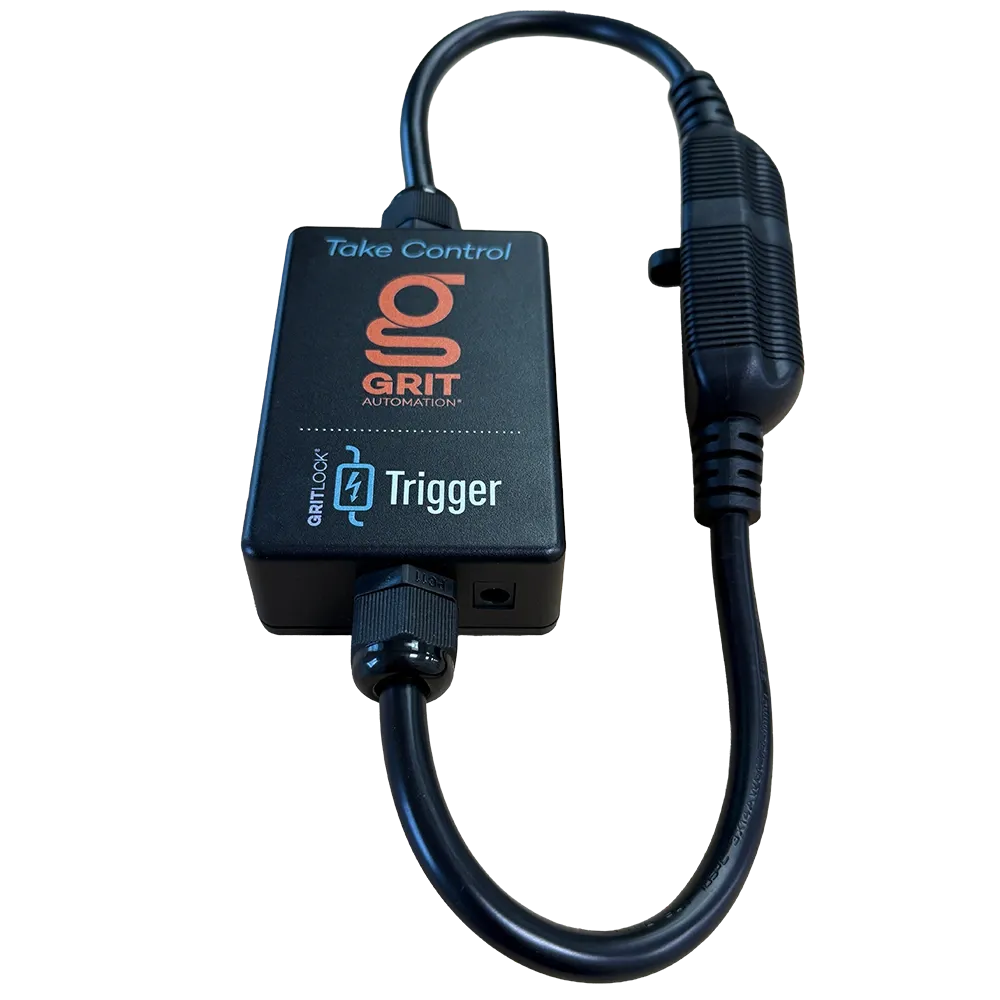

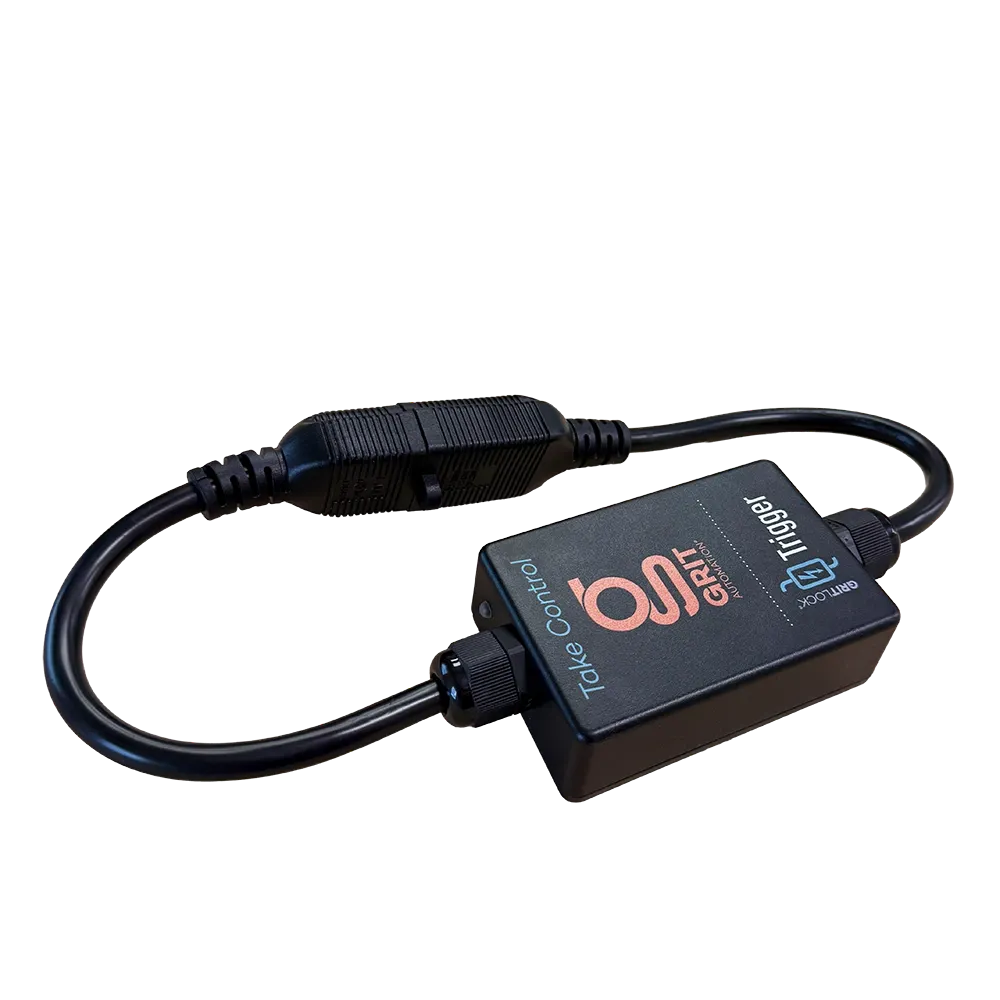

GRIT 220V 15A Trigger

Single-Phase Trigger

Plug-and-play power monitoring for 220V single-phase tools up to 15 amps.

The 220V Trigger plugs between the tool and a NEMA 6-15 outlet, detects when the tool powers on, and signals the GRIT Hub to automate blast gates, start the collector, and log runtime. No rewiring, one Trigger per tool.

Key Features

  • Inline current sensing: Detects tool activation with no wiring changes
  • Automated dust collection: Opens blast gates and starts collectors on tool-on
  • Runtime logging: Tracks tool runtime automatically
  • Status LED: RGB LED shows idle or running at a glance

Specifications

  • SKU GH-TR1002
  • Voltage 220V
  • Amperage 15A continuous
  • Phase Single-phase
  • Plug Type NEMA 6-15
  • Cord 1 ft, 14 AWG
  • Connectivity GRIT Mesh Network
  • Status RGB LED

In the Box

  • 1x GRIT 220V 15A Trigger (GH-TR1002)
  • 1x 14 AWG pass-through cord with NEMA 6-15P plug and NEMA 6-15R receptacle

Compatibility

Works with any 220V single-phase tool drawing up to 15A continuous on a NEMA 6-15 outlet.

Installation

Plug the tool into the Trigger, plug the Trigger into the wall outlet, and pair with the Hub through the GRIT app. No tools, no wiring, under two minutes.

*GRIT Hub is required for device functionality.

Important Notes

Verify your tool draws under 15A continuous on 220V single-phase before ordering.

Access Control
$ 165.00 $ 165.00
$ 165.00
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Frequently asked questions

Is the 220V 15A Trigger right for my tool?

It fits single-phase 220V tools drawing up to 15A continuous on a NEMA 6-15 outlet. Check the amperage on your tool's nameplate. Single-phase 220V tools over 15A need the Heavy Duty 220V 35A Trigger. Three-phase tools need a different Trigger, so email support@gritautomation.com and we'll point you to the right one.

My tool has an L6-20 or L6-30 plug. Can I still use a Trigger?

Yes, with the GRIT Heavy Duty 220V 35A Trigger. The 220V 15A Trigger has a NEMA 6-15 plug and receptacle. The Heavy Duty 220V 35A Trigger comes with your choice of NEMA 6-15, NEMA 6-20, L6-20 or L6-30, so pick the plug that matches your tool when you order. If you need a different plug after your order arrives, we can exchange it; you pay the shipping.

Do I need to rewire anything?

No. Plug the tool into the Trigger, plug the Trigger into the wall outlet, and pair it with the Hub in the GRIT App.

My table saw starts the collector the moment I switch on its control power. How do I fix that?

Some saws draw a burst of current when their electronics power up. In the Trigger's settings, choose the Spike profile so GRIT waits for that surge to pass. Then set the Activation Level above the saw's idle draw and below its running draw. The power graph on the Trigger screen shows both.
